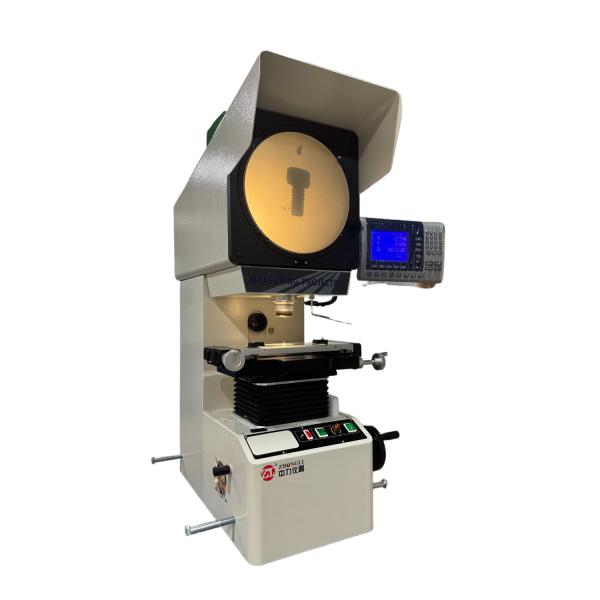

Vertical Projector Measuring Specimen Projector
The ZL-1500 series digital measuring projector is a precision, high-efficiency measuring instrument that integrates optics, mechanics, and electronics. This vertical projector delivers exceptional performance for contour and coordinate measurements across various industries.
Applications & Industries
Widely used in machinery, instruments, electronics, light industry, universities, research institutes, and metrology calibration departments. Ideal for inspecting templates, stamped parts, cams, threads, gears, formed milling cutters, tools, cutting tools, parts, terminals, watches, and diamonds.
Key Features
- High-quality optical system with clear objective lens imaging
- Accurate magnification with contour measurement error less than 0.08%
- Coordinate measurement indication error: (3+L/200) µm
- Includes dedicated miniature printer and foot switch for convenient data output
- Workpiece image display as positive or inverted image
- ZL-1509 model features rail transmission for enhanced stability and durability
- DP100 multifunctional data processing system with full Chinese display
Technical Specifications - ZL-1509 Model
| Parameter |
Specification |
| Metal Table Size |
340 * 152 mm |
| Glass Table Size |
196 * 96 mm |
| X Stroke |
150 mm |
| Y Stroke |
50 mm |
| Z Stroke |
100 mm (Includes Focusing) |
| Measurement Accuracy |
3 + L/200 |
| X,Y Display Resolution |
0.0005 mm |
Data Processing Capabilities
The DP100 system supports multi-point sampling, coordinate rotation, point, line, distance, and angle detection. Features RS-232 data output and measurement graphics display, making it an indispensable metrological calibration device for production workshops and laboratories.
